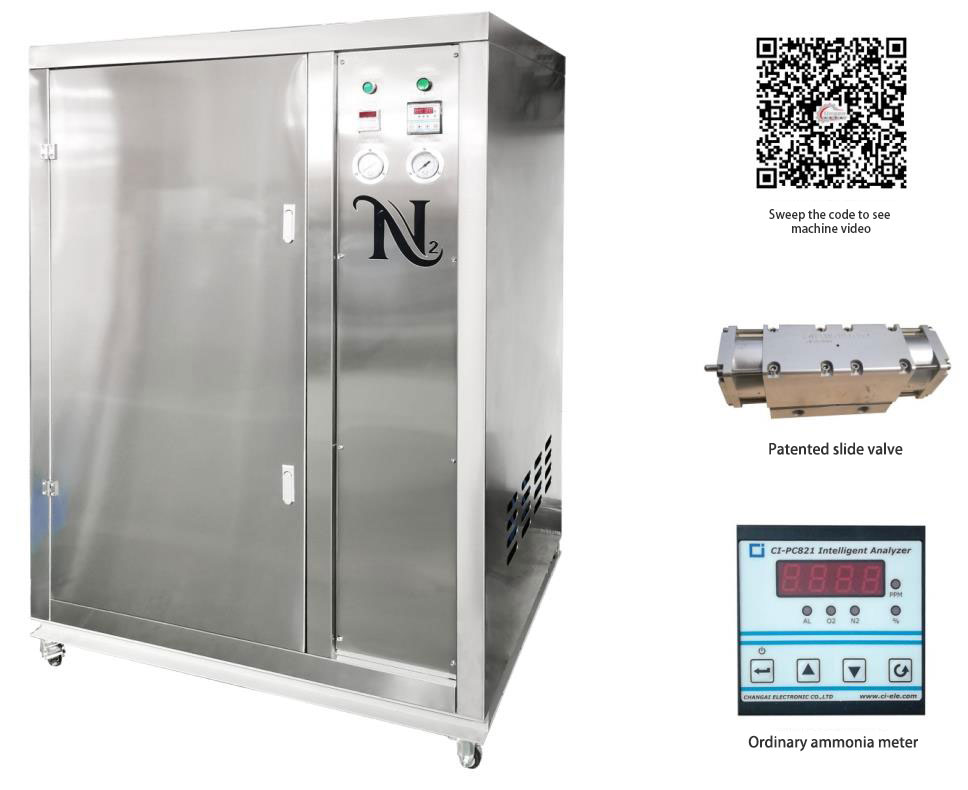

This model has a nitrogen purity of 99.9%,built-in freeze dryer three-stage filter,and occupies a smaller area. It suitable for nitrogen filling in food packaging,and can be matched with vertical packaging machines,sealing machines, pillow packaging machines,etc.
| Model | 3BD | 5BD | 8BD | 10BD | 12BD |
|---|---|---|---|---|---|
| Nitrogen output | 3Nm3/h | 5Nm3/h | 8Nm3/h | 10Nm3/h | 12Nm3/h |
| Nitrogen purity | 99.9% | 99.9% | 99.9% | 99.9% | 99. 9% |
| Feedpressure | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa |
| Nitrogenpressure | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa |
| Dew point | -20C° | -20C° | -20C° | -20C° | -20C° |
| Totalweight | 140kg | 147kg | 185kg | 226kg | 246kg |
| Dimensions | 840×750×1300mm | 840×750×1300mm | 1080×750×1500mm | 1280×850×1500mm | 1280×850×1650mm |
| Case material | SUS 201 | SUS201 | SUS201 | SUS 201 | SUS 201 |
