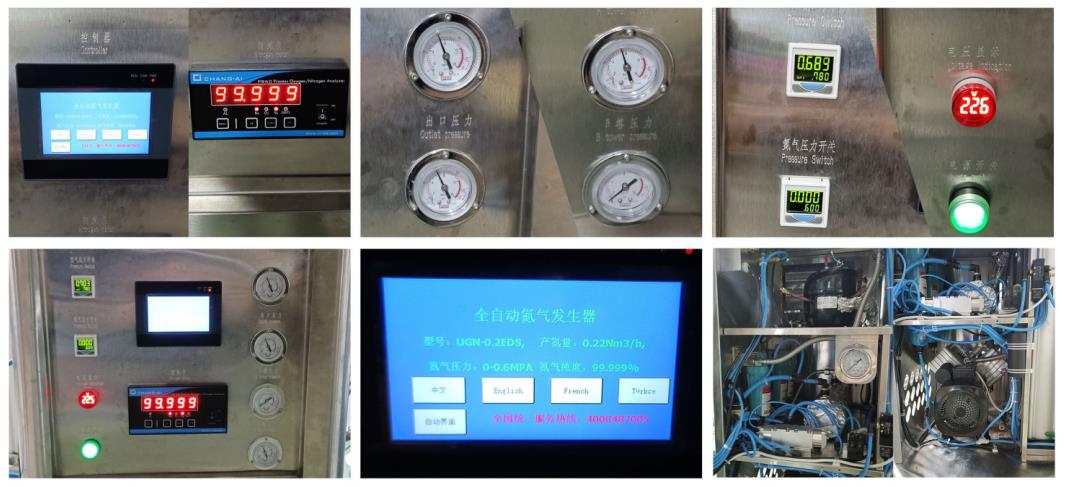

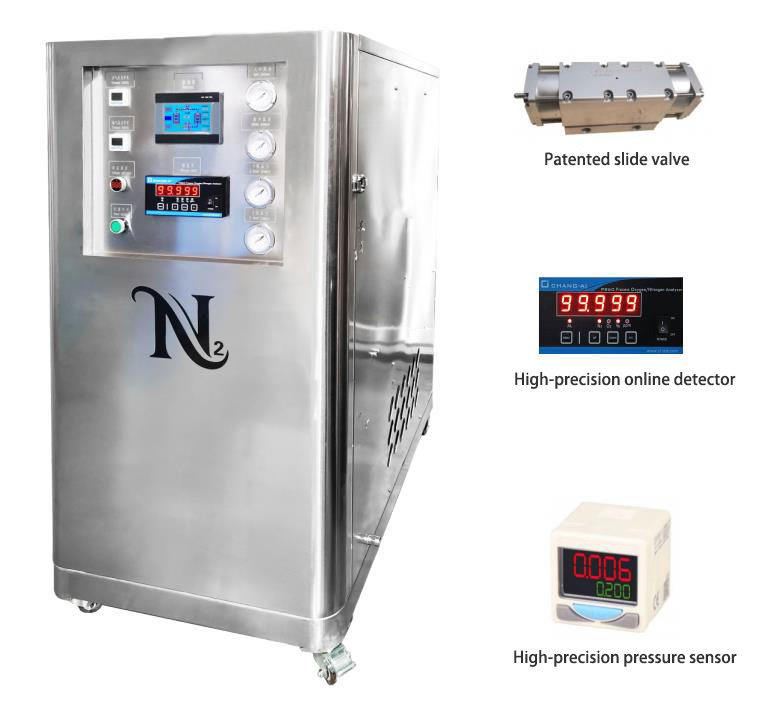

This model has a nitrogen purity of 99.999%and is generally used for laboratory research(chemical pharmaceutical industry). It uses the companys patented valve,built-in freeze dryer and three-stage filter.It is equipped with a high-precision nitrogen analyzer with alarm function,built-in oil-free air compressor,60-liter nitrogen storage tank,and automatic shutdown function.
| Model | 300EDS | 500EDS |
|---|---|---|
| Nitrogen output | 0.2Nm3/h | 0.5Nm3/h |
| Nitrogen purity | 99.999% | 99.999% |
| Feed pressure | 0.7-0.8Mpa | 0.7-0.8Mpa |
| Nitrogen pressure | 0-0.65Mpa | 0-0.65Mpa |
| Dew point | -20C° | -20C° |
| Total weight | 120kg | 140kg |
| Dimensions | 670×560×1250mm | 940×620×1260mm |
| Case material | SUS 201 | SUS 201 |
