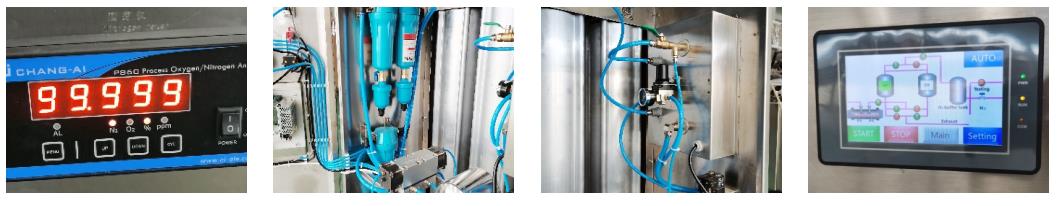

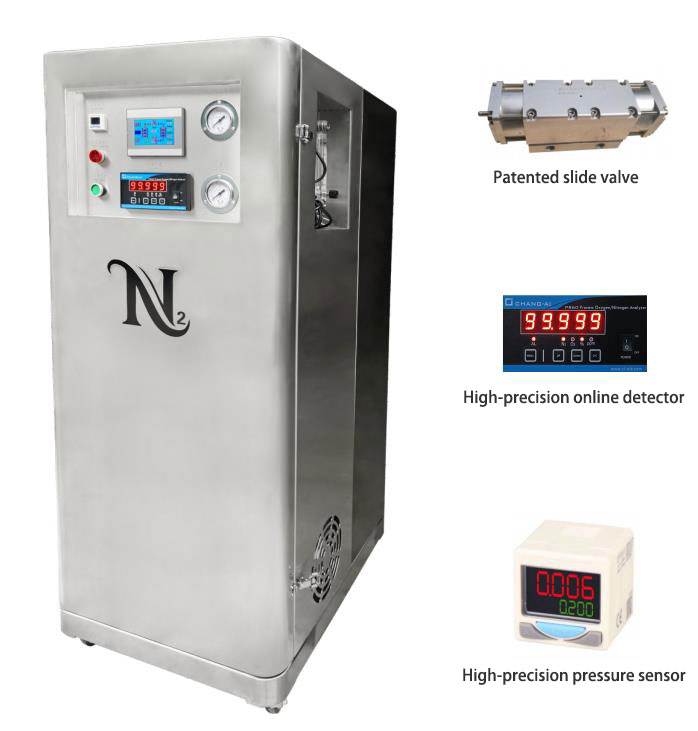

This model has a nitrogen purity of 99.999%,a high-end nitrogen generator,a built-in freeze dryer,and a threestage filter.It uses a high-precision nitrogen measuring instrument and has alarm and automatic shutdown functions.
| Model | 3ED | 5ED | 7ED | 8ED | 10ED |
|---|---|---|---|---|---|
| Nitrogen output | 3Nm3/h | 5Nm3/h | 7Nm3/h | 8Nm3/h | 10Nm3/h |
| Nitrogen purity | 99.999% | 99.999% | 99.999% | 99. 999% | 99.999% |
| Feed pressure | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa |
| Nitrogen pressure | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa |
| Dew point | -20C° | -20C° | -20C° | -20C° | -20C° |
| Total weight | 270kg | 320kg | 400kg | 450kg | 580kg |
| Dimensions | 580×660×1200mm | 580×820×1200mm | 580×980×1500mm | 580×980×1500mm | 580×1300×1780mm |
| Case material | SUS 201 | SUS201 | SUS201 | SUS 201 | SUS 201 |
