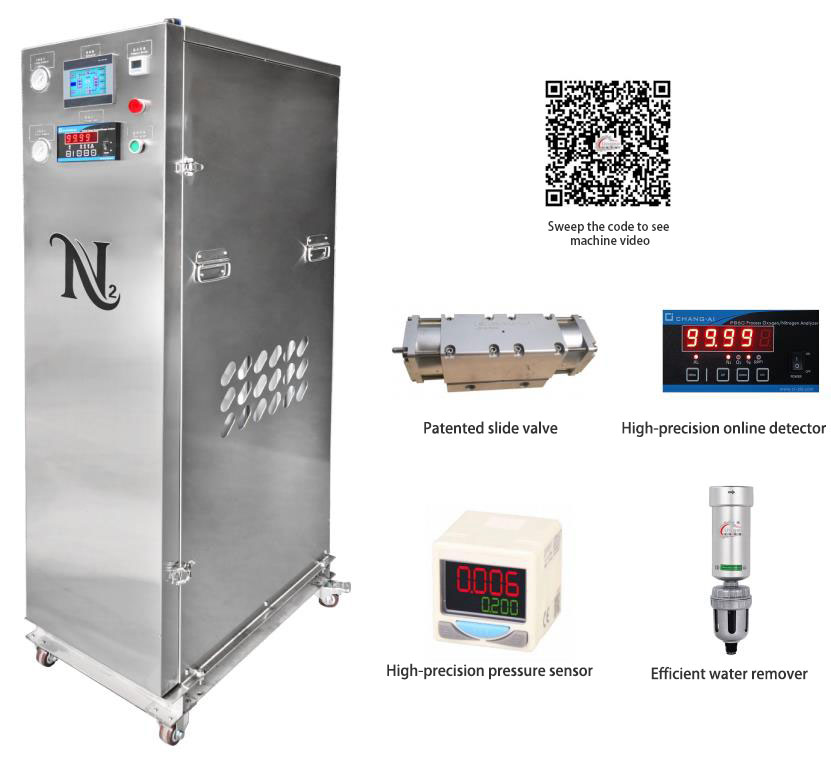

This model has a nitrogen purity of 99.99%,and by deeply dehumidifying the air,the dew point of the cold heatless regenerative dryer can reach about-50 C at atmospheric pressure,and the pressure dew point can reach about-30C.It is a dedicated nitrogen for industries such as laser welding/laser cutting/3D coating/3D printing.It uses a high-precision nitrogen analyzer and has alarm functions and automatic shutdown functions
| Model | 1EAD | 3EAD | 5EAD | 8EAD | 10EAD |
|---|---|---|---|---|---|
| Nitrogen output | 1Nm3/h | 3Nm3/h | 5Nm3/h | 8Nm3/h | 10Nm3/h |
| Nitrogen purity | 99.99% | 99.99% | 99.99% | 99.99% | 99.99% |
| Feed pressure | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa |
| Nitrogen pressure | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa |
| Dew point | -30C° | -30C° | -30C° | -30C° | -30C° |
| Total weight | 45kg | 80kg | 110kg | 205kg | 205kg |
| Dimensions | 290×670×950mm | 430×670×1160mm | 430×670×1460mm | 570×670×1460mm | 570×670×1860mm |
| Case material | SUS201 | SUS201 | SUS201 | SUS201 | SUS 201 |
